Chanzon 12V 5A LED Strip Power Supply 60W AC DC Adapter UL Listed for CCTV 2.1x5.5 2.5x5.5 Plug (Input 110V-220V, Output 12 Volt 5 Amp 60 Watt) Converter LED Driver Lighting Transformer 12 V 5 A

Chanzon 12V 5A LED Strip Power Supply 60W AC DC Adapter UL Listed for CCTV 2.1×5.5 2.5×5.5 Plug (Input 110V-220V, Output 12 Volt 5 Amp 60 Watt) Converter LED Driver Lighting Transformer 12 V 5 A

(8 customer reviews)

$17.88

Brand CHANZON
Power Source Corded Electric
Mounting Type Wall Mount
Current Rating 5 Amps
Maximum Frequency 60 Hz

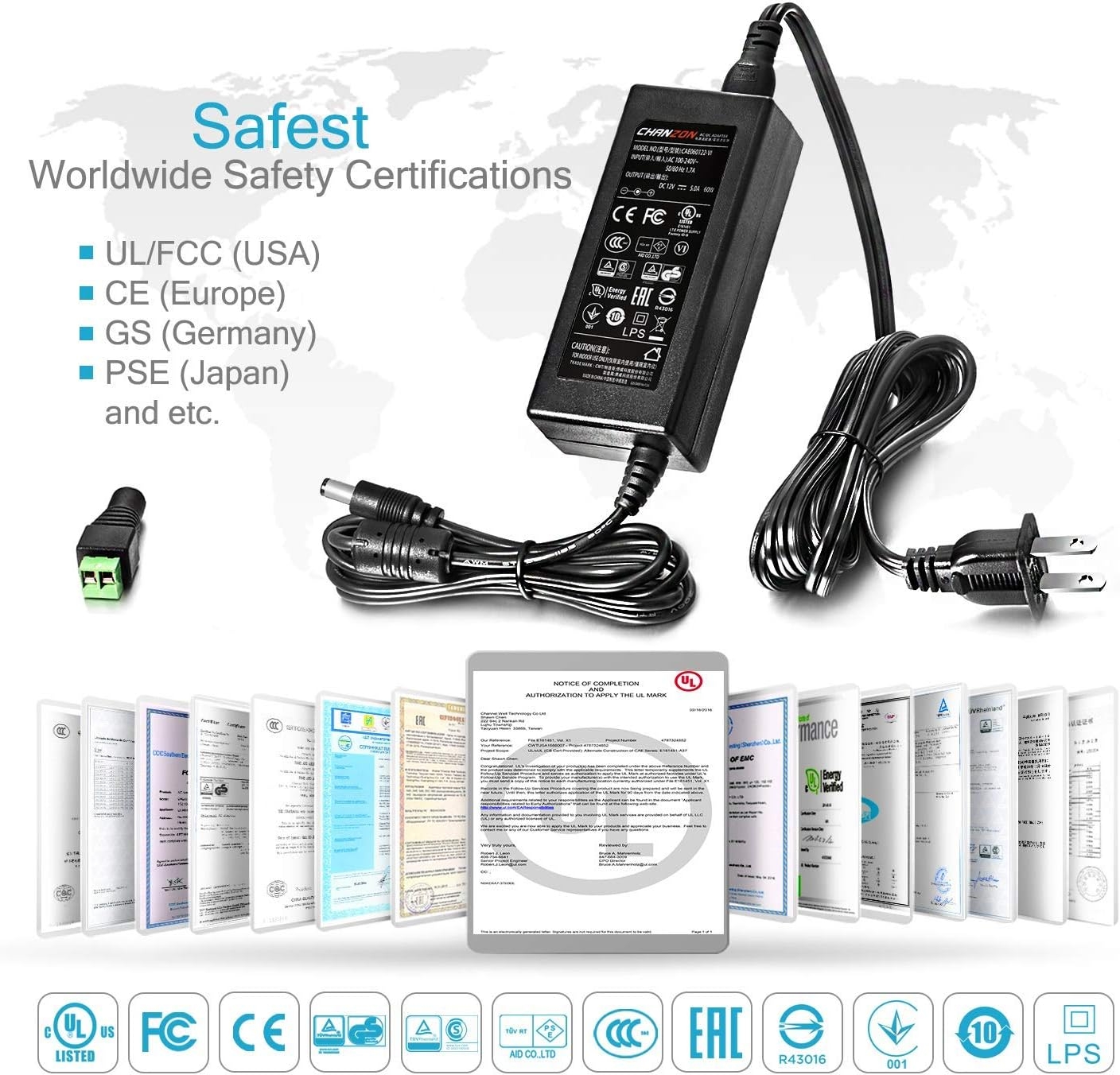

  • 20+ Certificates UL-Listed (USA) / FCC (US) / CE (Europe) / GS (Germany) / TÜV (Germany) / PSE (Japan) / CCC (China) / EAC (Russia) / BSMI (Taiwan) / TECT (Ukraine) and etc. (Low Quality Switching Power Supply Charger Easily Cause Fire, We Suggest to use CHANZON Secure AC-DC Adaptors)

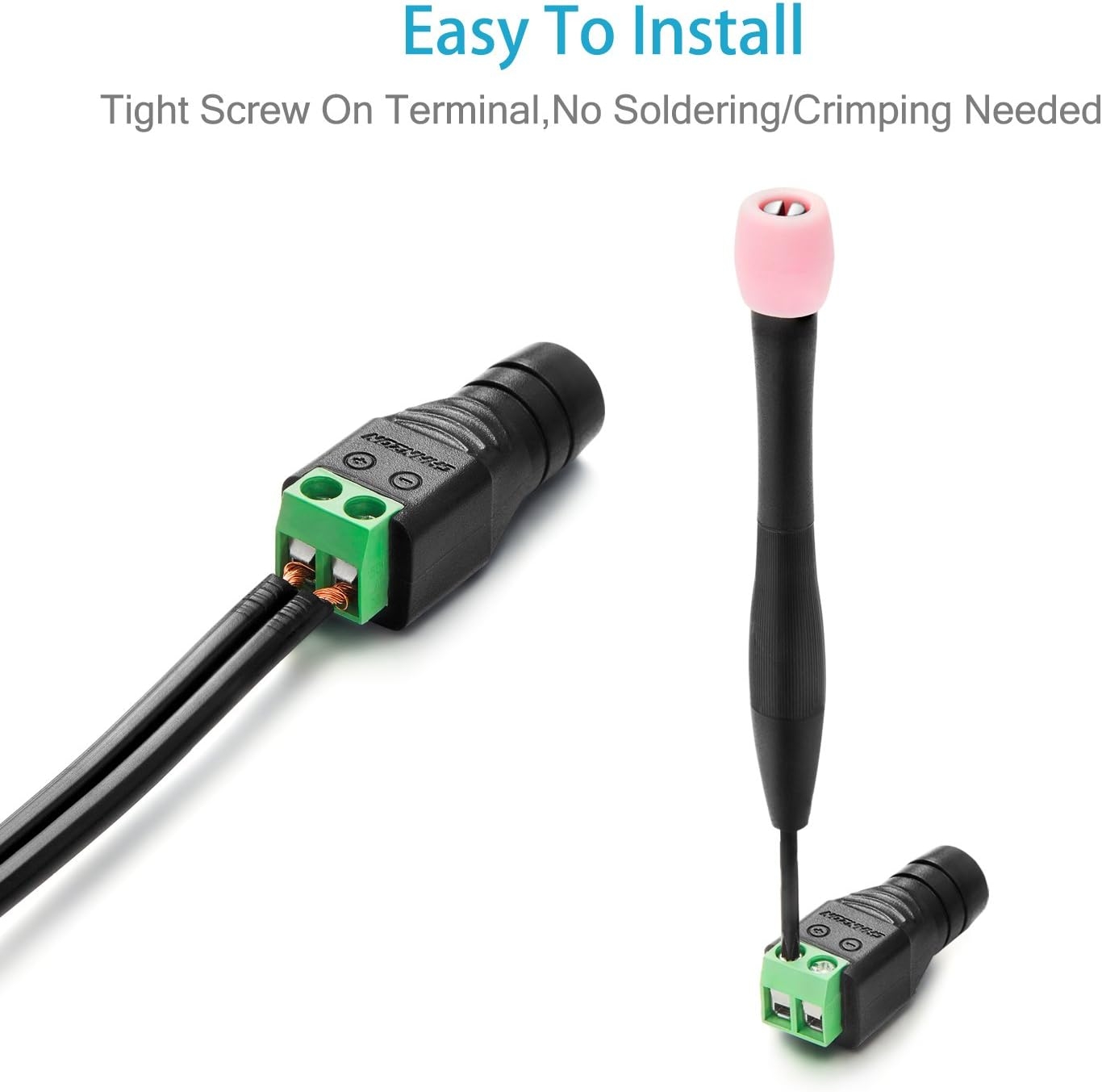

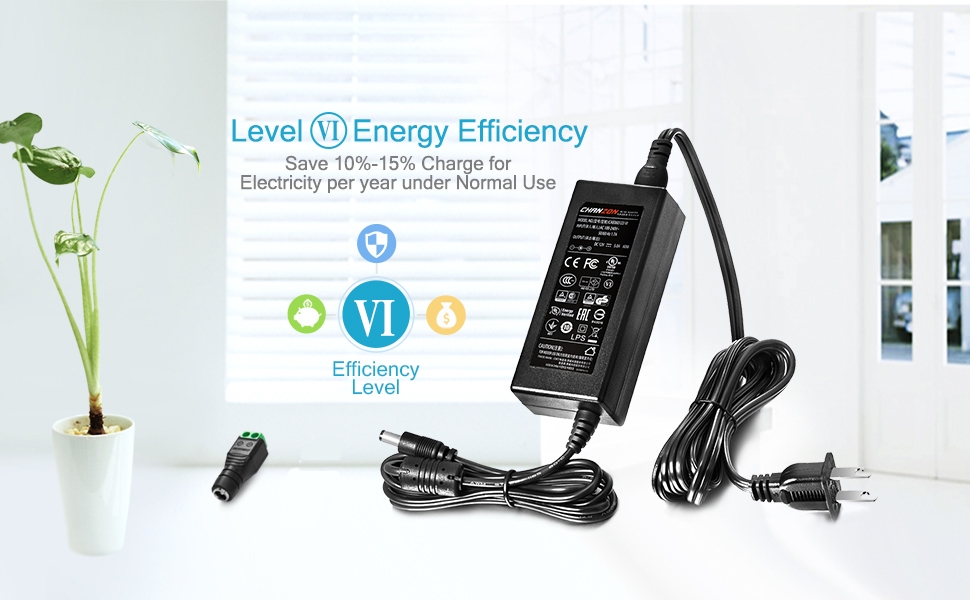

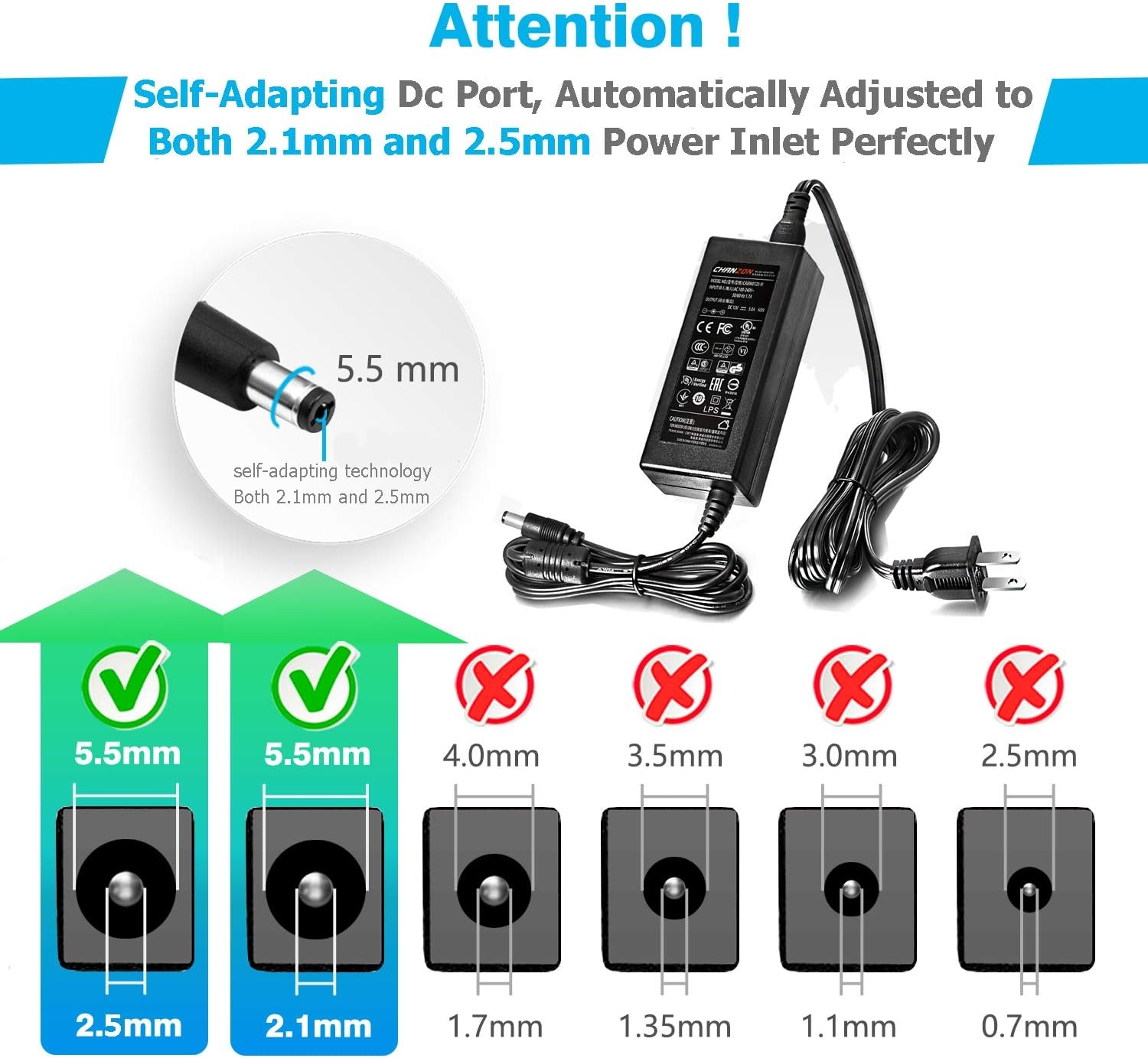

  • Fit for both 2.1×5.5mm & 2.5×5.5mm DC Power Inlet, Input: 110-220 Volt, Output: 12 Volt 5A 60 W, 50Hz – 60Hz, Eco-Friendly LEVEL VI ENERGY EFFICIENCY, Free Adapters Accessories: Chanzon Branded Wire Leads Cable Connector x1
  • 1 Years Free Replacement / Return | 24×7 Online Customer Service | Short Circuit Protection | Current Overload Cut-off | Automatic Thermal | High Efficiency | 40 x 0.15mm 100% Copper Power Cord with USA 2-prong Plug | Easy Install | 12 V Constant Voltage | Low temperature & No Noise | Full Wattage 60 W | Long Lifespan | High Quality Shockproof Retail Packing Box | Secure Black Plastic Case with LED 12V Power Adapter
  • WORK FOR: 12Vdc Devices at Max 5 Ampere 60Watt (0.5A 1A 1.5A 2A 2.5A 3A 4A 5Amp , all are Suitable), RGB & Single Color 2835 3528 5050 5630 5730 DC12V Low Voltage Flexible LED Rope Strip Lights, LED Ribbon Tape Light, LED Modules, LED Cabinet Lamps, Under Counter Lighting, CCTV Cameras, Security Systems, the transformers Replacement for 12Volt LCD Monitors, 12Vac TVs, 12V Wireless Router, Hub, 12 Vac ADSL, LEDs Remote Controler and other 12 Vdc Lamp Devices or Generic Electronic items
Share:
Description

Description


Product Description

Chanzon AC-DC Power Supply Adapter (DC 12V 5A 60W Max)

12 Volt 5 ampere

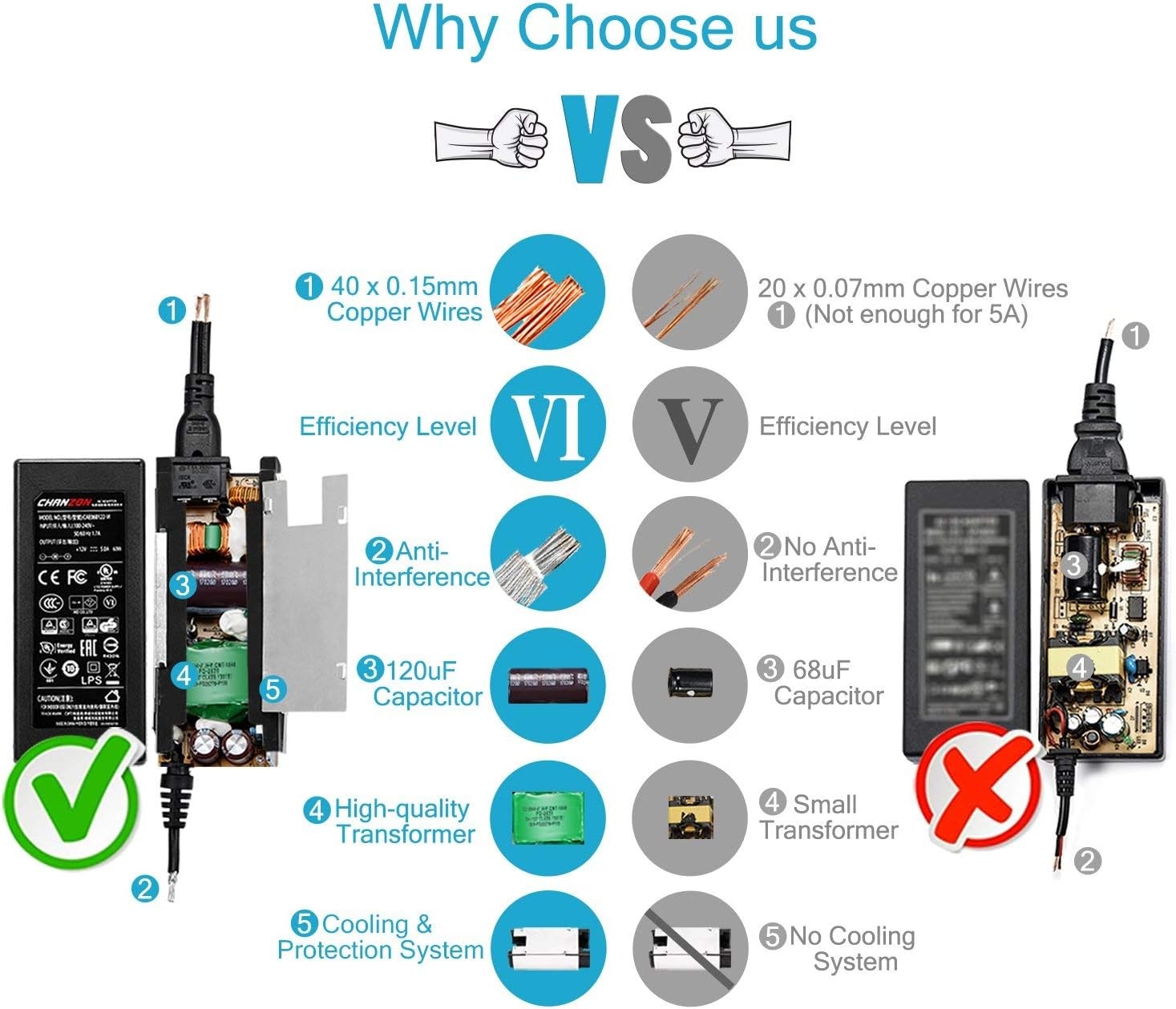

Why choose this

(1) Famous Original Components & Stable Circuit Board

(2) 40 x 0.15mm 100% Copper Power Cord

(3) Low fever & No Noise at Full Wattage Working

(4) Overload Cut-off Automatically (Avoid Fire)

(5) Short Circuit Protection

(6) 60 Watt Full Wattage

(7) Long Lifespan

accessories

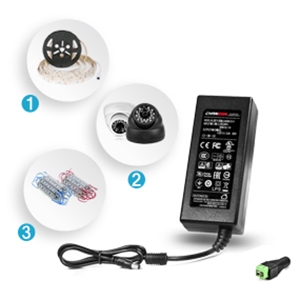

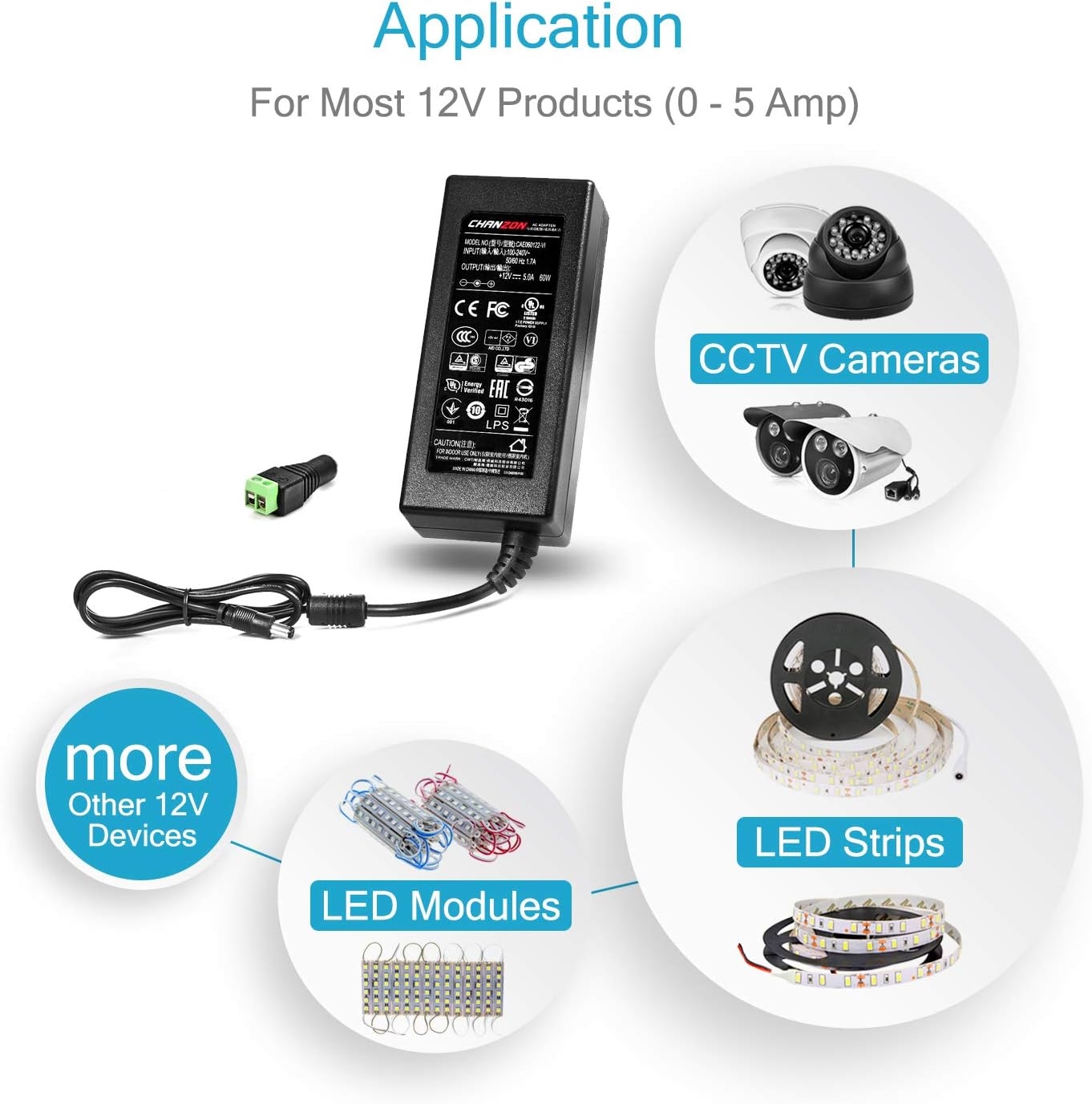

Application

For Most 12Vdc Products ( 0-5 Amp )

(1) 12V LED Strips.

(2) 12V LED Modules.

(3) 12V CCTV Security Cameras

(4) 12V LCD Monitors

(5) Other 12V Devices (Not more than 60W)

Name : AC-DC Power Adapter

Brand : Chanzon

Model : CAE060122-VI

Power : 60W Max

Input : AC 100-240V~50/60Hz 1.7A

Output : DC 12V 5.0A Max

Size : 4.2*1.8*1.2 (inch)

Net Weight : 8oz

Input Power Cord ① : 6ft

Output Power Cord ② : 4ft

Packing Box : 5.3*3.6*2.4 (inch)

Packing Weight : 12oz

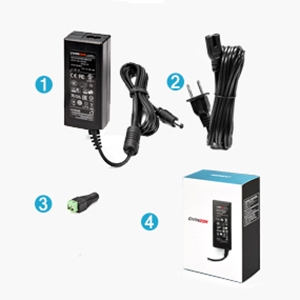

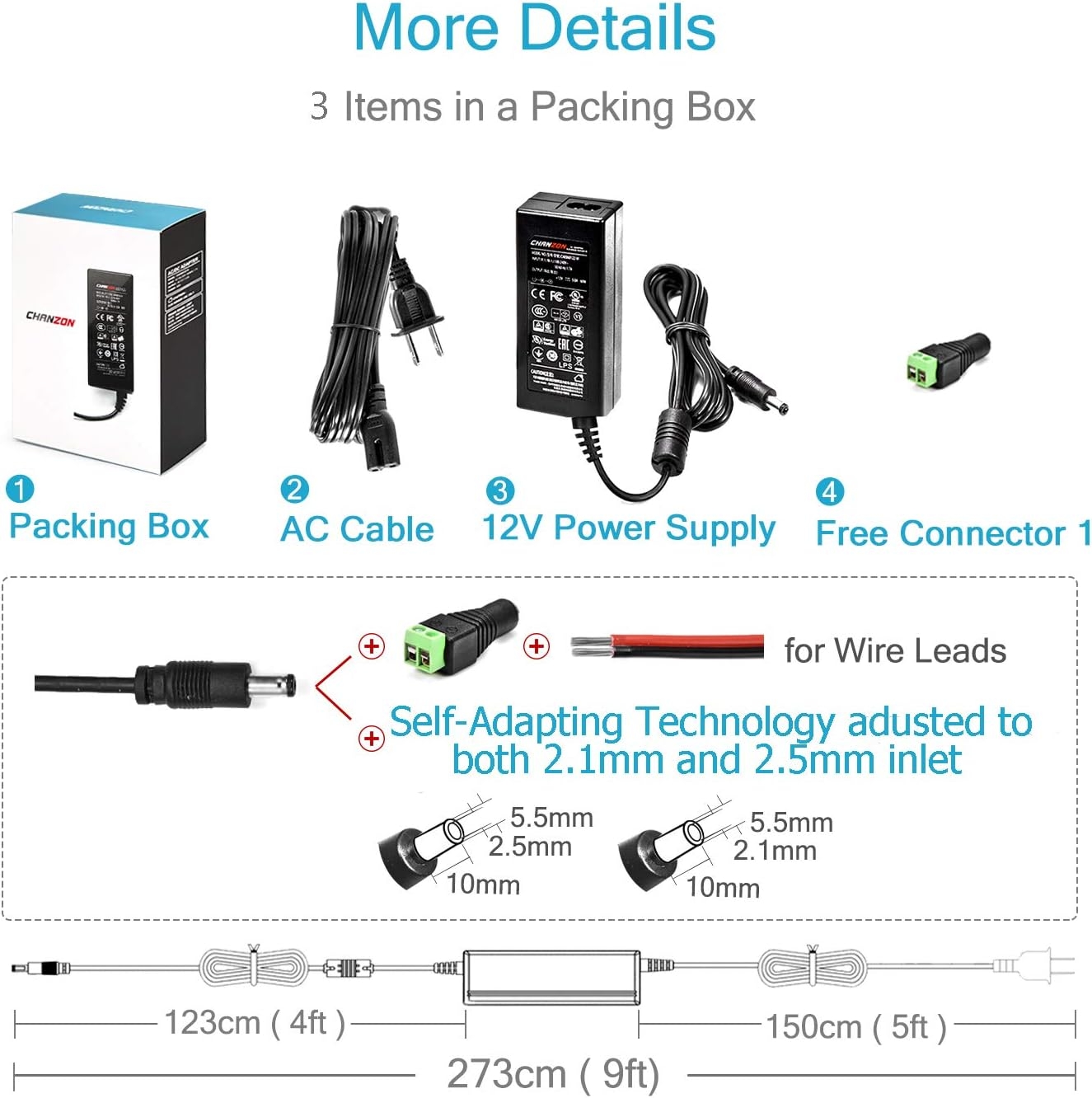

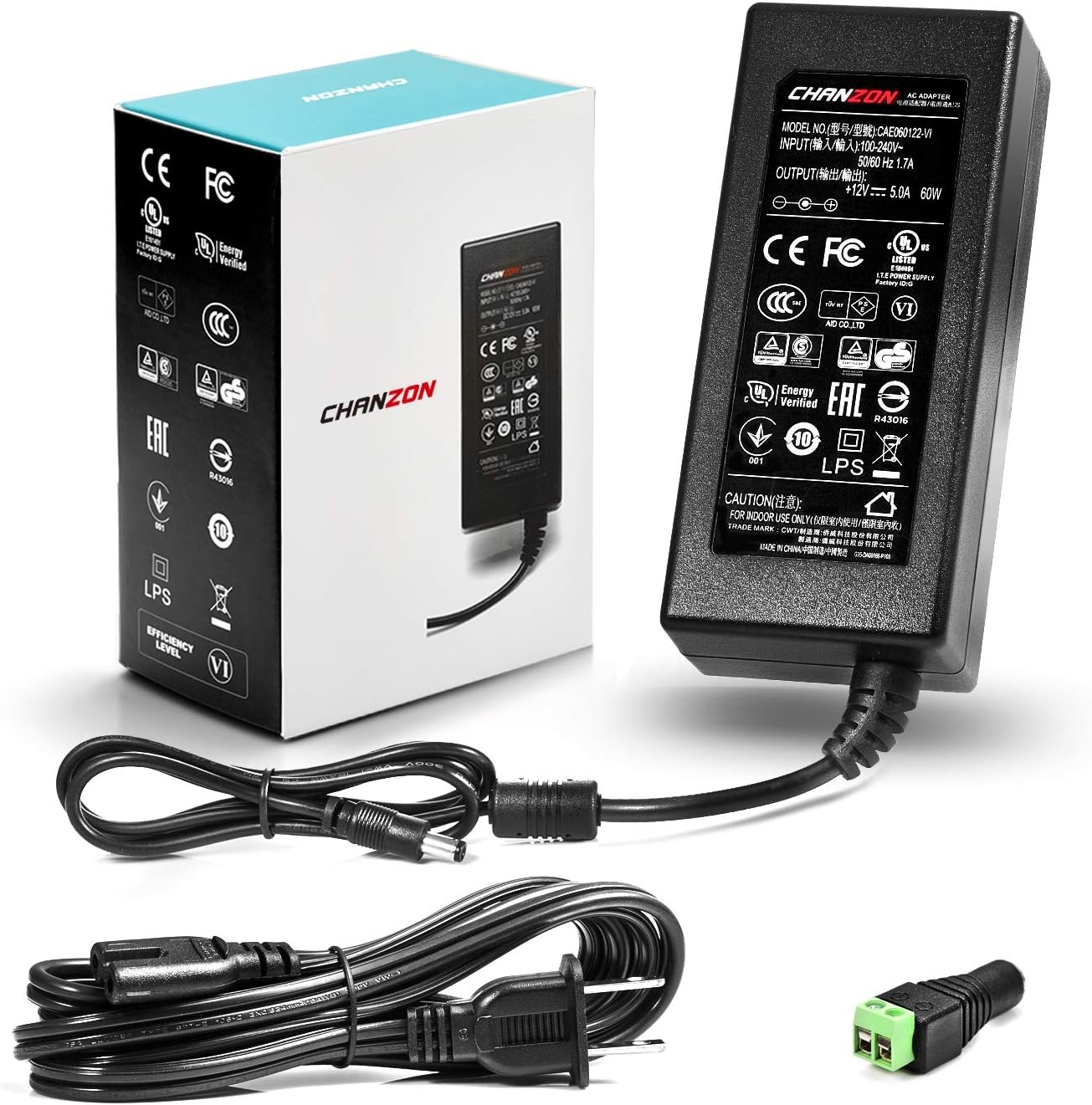

Package

1 x AC-DC Power Adapter

1 x AC Input Cable

1 x Power Jack Adapter

1 x Packing Box

Additional information

Additional information

Weight 10.7 lbs
Dimensions 5.31 × 3.9 × 1.5 in
Package Dimensions

5.31 x 3.9 x 1.5 inches

Item Weight

10.7 ounces

ASIN

B073QTNF9F

UNSPSC Code
Item model number

1DY-12V5A-US

Date First Available

July 5, 2017

Manufacturer

CHANZON

Reviews (8)

8 reviews for Chanzon 12V 5A LED Strip Power Supply 60W AC DC Adapter UL Listed for CCTV 2.1×5.5 2.5×5.5 Plug (Input 110V-220V, Output 12 Volt 5 Amp 60 Watt) Converter LED Driver Lighting Transformer 12 V 5 A

  1. Larry Rowthorn


    I purchased one of these and then another 25 back in April of 2018 to replace ones used on some medical monitors that were failing and the OEM units were no longer available. Just needed 12V 5A with the correct size plug and these fit the bill. They turned out to be very dependable and eventually outlasted the monitors. No failures over the past five years. Very happy.

  2. Dave S


    Steady and consistent

  3. tommcg


    This is my third 12V 5A power supply, hopefully third time is a charm.While this unit was more expensive than other 12V 5A adapters, it claimed efficiency level “Class VI”, so I decided to try it after another brand 12V 5A unit abruptly failed.I measured output voltage at various current loads using digital electronic load tester, powering the adapter with 123VAC and letting the unit warm up for 30 minutes at midrange load. The output voltages were measured at the output of the DC connector.The voltage output starts at 12.34V with zero load and slowly tapers (almost linear) to 11.965V at 5.0A of output (max rated), and still provides 11.827V at 6.5A of output, 30% beyond rated capacity. I would not recommend running it beyond 5A continuous, but nice to have some headroom for intermittent higher loads. The overload protection kicked in above 6.75A output, dropping output voltage to zero until load reduced.Measuring wattage draw at the wall socket to compute efficiency shows peak efficiency at 89% between 0.5A and 1.0A of output, 87% at 3.0A, and 85.5% efficiency at 5.0A output. That is significantly better than any other 5A adapters I’ve tested. Also noteworthy that at zero load, there is nearly zero wattage draw from the wall, unlike other adapters I’ve tested that have half a watt or more of phantom power draw at zero output, so the “Class VI” efficiency label seems legit.

  4. Ricky M Purvis


    My tivo was not fully booting. Stuck on the boot screen. This power supply fixed my problem.

  5. DRockstar


    I am reviewing the following product: Chanzon 12V 5A 60W AC DC Power Supply Adapter (Input 110V-220V, Output 12 Volt 5 Amp 60 Watt)This power supply was an extremely important purchase for me. I bought it since it was highest rated power supply on Amazon.com with the requirements I was looking for. I wanted a genuine 12V 5A Positive tip power supply that could provide up to 1A each to up to 5 items simultaneously. I’m using this with a Pig Hog 10 Spot power splitter to power four semimodular synthesizers at the same time. I needed this power supply to have enough current to do the job, without introducing noise into any of the circuits, since I am cross patching audio and control voltage across several synths in my musical endeavors. I’m currently using this to power the following at the same time: Arturia MicroBrute, Moog Mother 32, Behringer Model D, and Behringer Neutron. This power supply had to have the advertised current rating, since I wanted the power supply to be well beyond the current specs for what I am powering. I did not want to overwork the power supply by shortchanging the current draw.I have been using this Chanzon Power Supply for over 2 months now, with no issues whatsoever so far. I was very careful testing with each and every synth before relying on this full time. I have had no issues with noise. The power supply gets warm, without becoming hot. I have left it on for days at a time without issue. I have this plugged into a Furman power conditioner that I switch on to power all my current synths simultaneously. This has enabled me to replace 4 DC wall wart power supplies that took up a lot of space. I am grateful the positive reviews on this power supply have been genuine, since my setup is quite expensive and quite a labor of love.I want to leave this review to help any others that endeavor to simplify their power to their semimodular synthesizers. Before you attempt to do this, be informed about your power requirements, voltage, and tip polarity. Getting any of that wrong can destroy your precious gear. But I am writing this to confirm that this power supply has worked flawlessly for me and what I wanted to achieve, and I’m grateful for it. I would recommend this to power any of the synths I have tested it with. I could be used to power just one of them, or all of them at the same time, as long as you have a quality splitter.Here are Amazon.com links to my setup in case it helps anyone else:https://www.amazon.com/110V-220V-Converter-Lighting-Transformer-Flexible/dp/B073QTNF9F (this product I’m reviewing)https://www.amazon.com/Pig-Power-Spot-Daisy-Chain/dp/B013M8CKMWhttps://www.amazon.com/Arturia-MicroBrute-Analog-Synthesizer/dp/B00G31YMVShttps://www.amazon.com/Moog-Mother-32-Modular-Analog-Synthesizer/dp/B0161LXW06https://www.amazon.com/Behringer-MODELD-Synthesizer/dp/B07BHYZRYGhttps://www.amazon.com/Behringer-NEUTRON-BEH-Synthesizer/dp/B07J1VP47VPeace, and may your experience with this be as positive as mine is. I should buy more just to have backup.

  6. Sha


    This Chanzon 12V 5A AC DC Power Supply Adapter replaced the AC adapter that originally came with my TIVO Roamio OTA DVR. That original adapter was Tivo R3413 AC adapter output 12V 2.0 Amp.One day my TIVO Roamio stopped working. It had continuously blinking red/blue/green LED lights. I read that replacing power adapter would fix it. Online post recommended this Chanzon adapter. Although the Chanzon adapter is rated for 5 amps, it meets power requirements of TIVO Roamio.

  7. UTA


    We use the Chanzon to power an APC CP12142LI. The power supply that APC recommends is 12V 3A, even though the APC accepts more amps. The 12V 5A Chanzon charged the APC in less than one day, while the 12V 3A charger appeared to be taking over two weeks to charge the APC. The Chanzon is UL listed, which is a big plus. The Chanzon apparently has bigger capacitors than many 12V 5A chargers, which increases the start-up time and the time that a voltage output remains after disconnect. For most applications, the bigger capacitors provide a smoother output, but the longer start-up time could be distracting for some applications like turning lights and off. For our application, the longer start-up time is no problem whatsoever and we prefer the higher quality output waveform.

  8. Christian Turpin

    .
    👍
